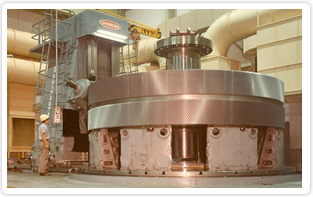

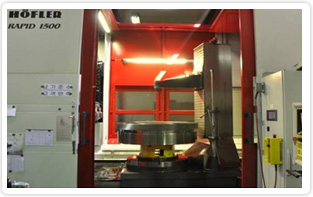

SHIBAURA HOBBING MACHINE 7000 (Hobbing) Equipments   HOFLER RAPID 1500 CNC

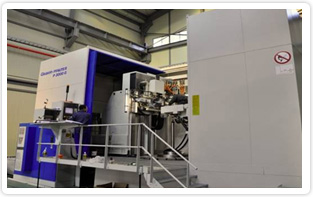

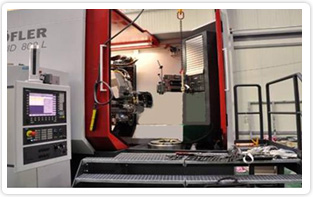

Gleason-Pfauter PG3000G   HOFLER RAPID 800L


Hobbing Machine for spur, Helical gear
Name Model Manufacturer Size Unit Remarks
Gear Hobbing
machine
  Shibaura M50 xDia7000xH2000 1
P2300 Pfauter (GER) M25*Dia1800*H1000 1
ZFWZ-1250 Module (GER) M14*Dia1500*H490 1 Tangential divice
NDH-1200 Nihon Kikai M12*Dia1260*H450 1 Crowing device
ZFWZ-08 Module (GER) M10*Dia800*H400 1 Automatic
YNL-20 Yunil (KOR) M6*Dia660*H360 1
P400 Pfauter (GER) M6*Dia400*H275 1 Crowing device
ZFWZ-400 Modul (GER) M6*Dia400*H275 1

Grinding machine for spur, Helical gear
Name Model Manufacturer Size Unit Remarks
Gear Grinding
machine
P3000G Gleson-Phauter M45 x D3020 x 1600B 1 CNC & self testing
P1200G Gleson-Phauter M25 x D1200 x 800B 1 CNC & self testing
RAPID800 Hoefler (GER) M25 x D800 x 800B 1 CNC & self testing
RAPID1500 Hoefler (GER) M34*D1500 1 CNC & self testing
H800 Hoefler (GER) M14*Dia800*H240 1 CNC
ZSTZ-630 Niles (GER) M12*Dia630*H220 2 Program control
ZSTZ-315C3N Niles (GER) M10*Dia250*H120 2 Tapper grinding
RZ801 Reishauer (Swi) M9*Dia850 1 CNC
ZB Reishauer (Swi) M7*Dia700*H230 1 CNC
Spline Grinding machine KS803 Kapp (GER) Dia150*H800 1 Automatic

Worm & Worm Hobbing, Grinding machine
Name Model Manufacturer Size Unit Remarks
Worm gear ZFWZ-08 Modul (GER) M14*Dia800*H560 1 6-axis CNC CTRL
Hobbing M/C full automatic
Worm & Thread HNC-35 Klingelnberg Dia350*1330L 1 6-axis CNC CTRL
Grinding M/C full automatic
Worm & Thread
milling machine
NTM 1000 Nihonkikai Dia350*1500L 1
HHM-300S Pegmat Dia300*2000L 1
GFL 2000 WMW (GER) Dia200*2000L 1
HSF-160 Walztechnik Dia160*520L 1
Center Grinding SIXZB Knops (GER) Dia320*H1000 1
Machine

Internal gear Hobbing Machine
Name Model Manufacturer Size Unit Remarks
Gear shaper 5M161 Stanko (USSR) M12*ST160*D1250 1 Internal gear cutting

Turining, Boring, Lathe machine
Name Model Manufacturer Size Unit Remarks
Vertical TB-100 Shibaura SW1400*1070B 1
Turining Lathe TX16 Toshiba SW2000*1500B 1
  TMS 2/40 O-M SW4000*1650B 1
  TFM160 O-M SW1880*h2900 2 CNC
Boring machine FANUC-110 KURAKI W1600*H1200 1 CNC, Dia. 110
  KBN-135 WIA W4000*H1250 1 CNC, Dia. 135
Universal   Mammut (GER) NO.4 1
Milling machine   Tongil NO.5 1
Slotting machine MLS-300 Masuda (JPN) ST330*Dia570 1
  MLS-600 Masuda (JPN) ST600*Dia1200 1
Centering machine   Osakakosakusho Dia100*700L 2
High speed lathe PROTURN50 Hankuk (KOR) SW630*2200L 1 CNC
500 Unimab (FRA) SW500*800L 1 CNC
SOMOR-500 SEAH SW400*1050L 2
WL-520 Whacheon SW580*1500L 1
Heavy duty lathe TEK5000 Dakisawa (JPN) SW1050*5000L 1
4FLH-20 Fuji Seiki (JPN) SW1550*1500L 1
Radial drilling   Nambuk Dia750 1
machine BR-2000 Nambuk Dia2000 1

Tool Grinding Machine
Name Model Manufacturer Size Unit Remarks
Hob Sharpener AS 5V Kapp Dia155*700L 1 HYD. Automatic
AS 9V Kapp Dia400*1250L 1
Cutter grinding CB-45 Yuraka (JPN) Dia150 - Dia460 1
Tool Grinding   Youngjin (KOR)   1
Surface grinding WGS-400 Woojin 400*180 1

Spur and Helical Gear Grinding
Max. Module 45
Max. P.C.D. 3020mm
Max. Face Width 1600mm
Max. Stroke 1600mm
Quality AGMA 12Class (JIS 0 Class)

Worm and Thread Grinding
Max. Module 25
Out Diameter 350mm
Grinding Length 600mm
Lead 599mm
No. of Teeth 1-99
Quality AGMA 12 Class (JIS 0 Class)

Worm and Gear Hobbing
Max. Module 25
Max. P.C.D 2500mm
Quality Under D650mm : AGMA12class(JIS 0 class)
Over D650mm : AGMA9class (Jis 3 class)

Internal Gear Shaping
Max. Module 22
Max. P.C.D 1200mm
max. Face Width 530mm
Quality AGMA 11class (JIS 1 class)

Case Boring
Table Left-Right 9580mm
Front-Back 1500mm
Spindle top-bottom 3000mm
